Amplifier Module

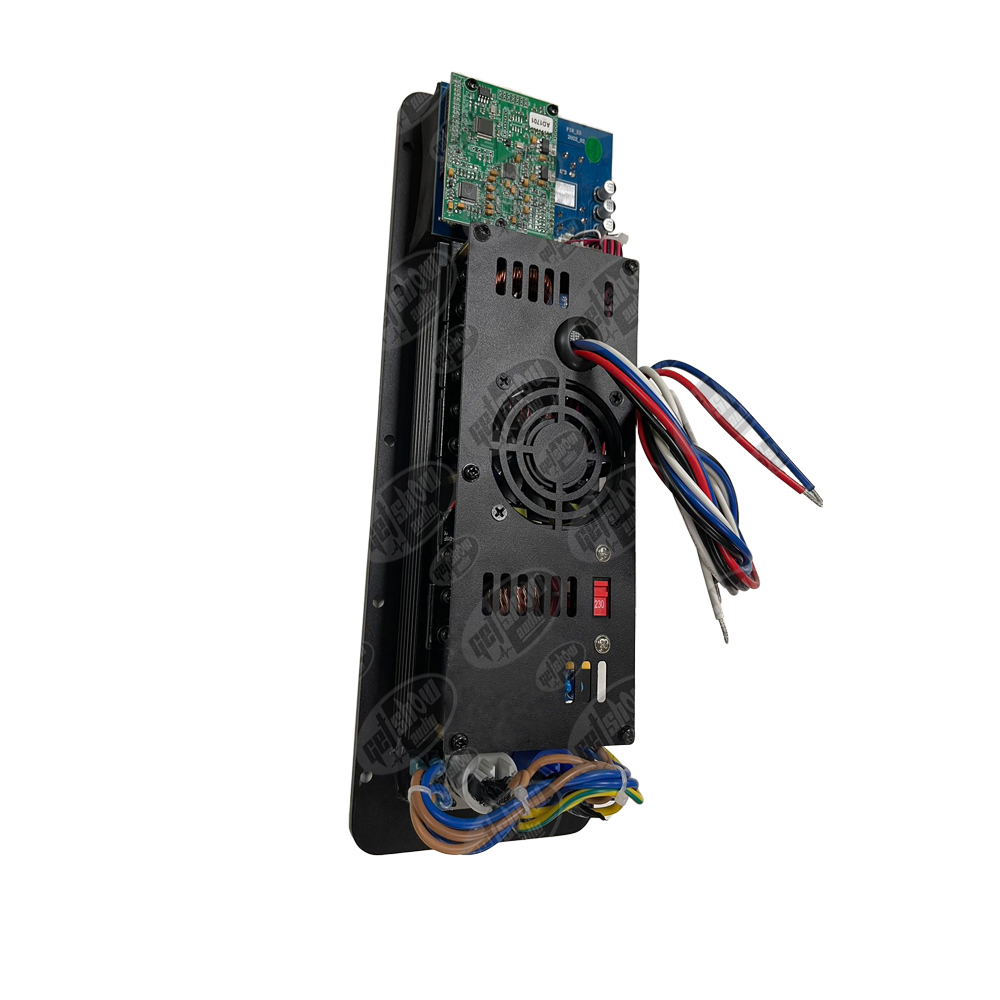

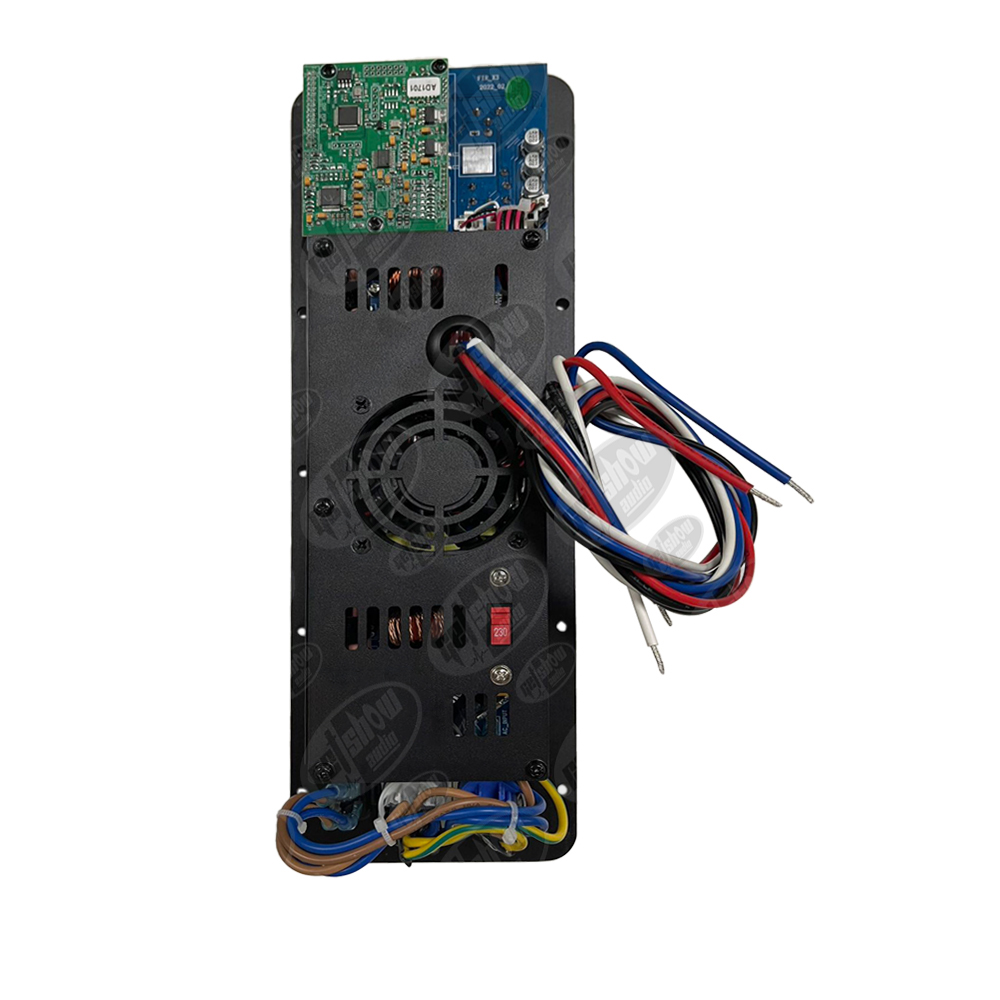

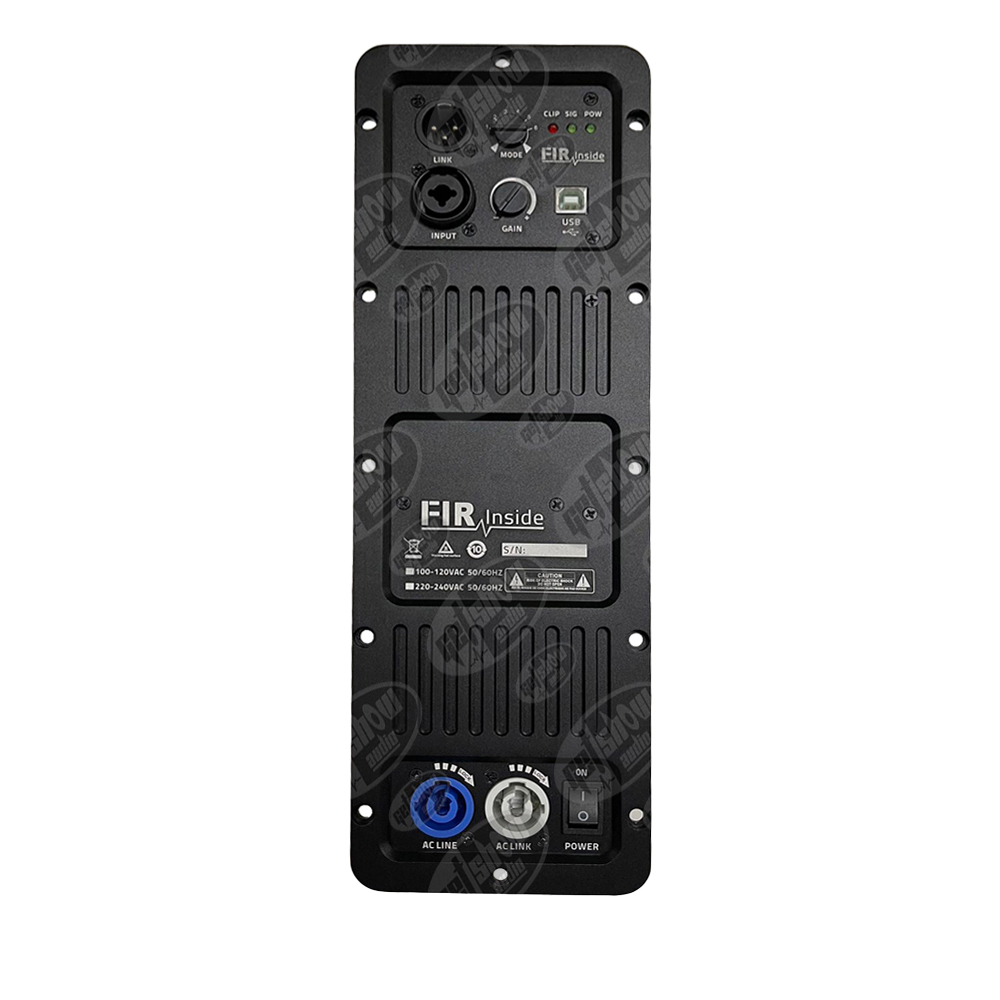

FIR410 FIR Amplifier Plate
- 2 CH amplifier
- 460W+150W RMS power
- Built-in DSP processor
- FIR function
- Product description: 600 watts FIR Amplifier Module Professional Speaker Plate Amplifier Class D with DSP Audio Processor
GETSHOW 600W FIR Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
*Professional CLASS-D amplifier.
*Built-in high-performance 96KHZ DSP audio processor, FIR adjustment.
* Free Software is offered
*110-230v general working voltage
| Specification | |
| Model: | FIR-410 |
| Stereo 8Ohms: | 300w+100W |
| Stereo 4Ohms: | 460W+150W |
| Frequency Response: | DSP adjustment |
| THD (-5dB/8Ohms): | ≤0.03% |
| S.N (20HZ-20KHZ 8Ohms): | >105 |
| Conversion rate: | >10V/us |
| Sensitivity: | 0dB |
| Damping factor (10-400HZ,8Ohms): | >300 |
| Output Topology: | CLASS-D |
| Dimensions(HXWXD): | 335X110X65MM |
| Power Supply Requirements: | AC220V/AC240(170-264V)/AC120V(85-132V),50HZ/60HZ |
