COS003-2 Way Amplifier Module
- 2 CH amplifier
- CLASS-D amplifier
- USB SOCKET
- Product description: 2 Way Amplifier Module Professional Speaker Plate
800+300W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
*Professional CLASS-D amplifier
*Built-in high-performance 96KHZ DSP audio processor, USB SOCKET for connection
* Free Software is offered
*115-230v general working voltage
*XLR balance RCA unbalance signal input
*Individual Speakon output socket
*Widely used in professional speaker, 2.1 sound system, column speaker system

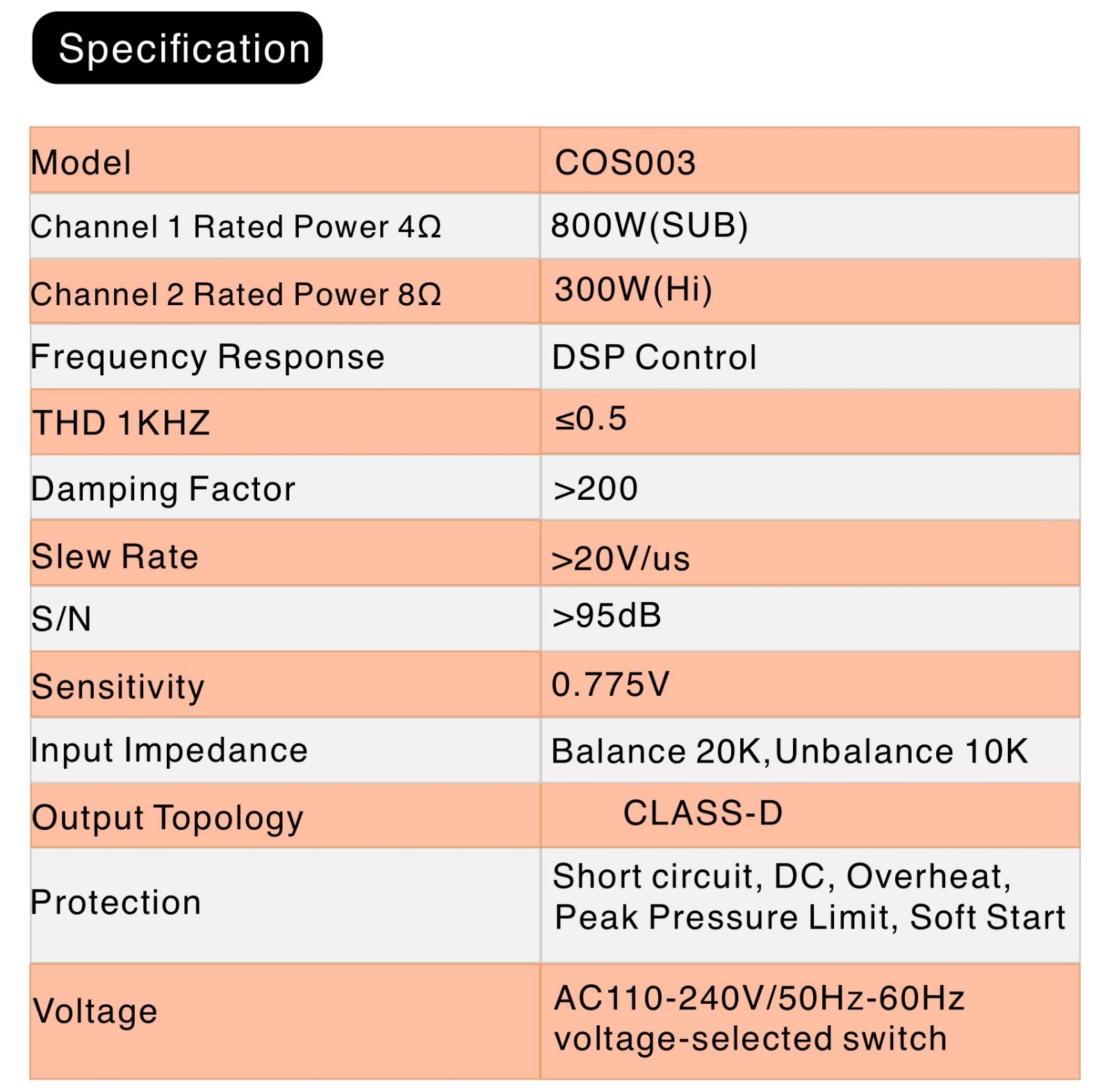

Specification | |
| Model ： | COS003 |
| Chabnnel 1 Rated Power 4 Ω： | 800W（ SUB） |
| Chabnnel 2 Rated Power 8 Ω： | 300W（Hi） |
Frequency Response : | DSP Control |
| THD 1KHZ ： | ≤0.5 |
| Damping Factor ： | >200 |
| Slew Rate ： | >20V/us |
| S/N ： | >95dB |
| Sensitivity ： | 0.775V |
| Input Impedance ： | Balance 20K,Unbalance 10K |
| Output Topology ： | CLASS-D |
| Protection ： | Short circuit,DC，Overheat，Peak Pressure Limit，Soft Start |
| Voltage ： | AC110-240V/50Hz-60Hz voltage-selected switch |
