Amplifier Module

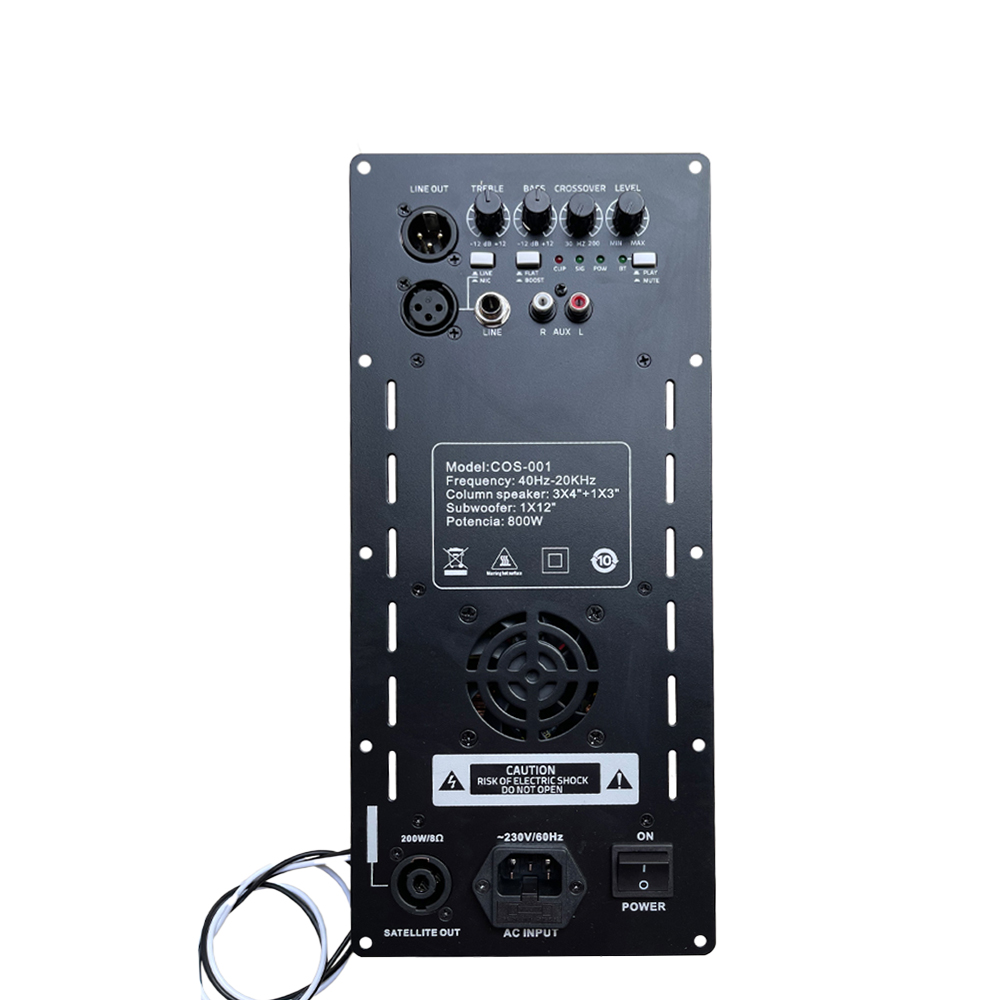

COS001- 2 Way Amplifier Module
- 2 CH amplifier plate
- Class AB amplifier
- 15-230v working voltage
- XLR , RCA input
- Product description: 2 Way Amplifier Module Professional Speaker Plate
600W+200W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class AB Traditional Amplifier Board
*Professional CLASS-AB amplifier
*115-230v general working voltage
*XLR balance RCA unbalance signal input
*Individual Speakon output socket
*Widely used in professional speaker, 2.1 sound system, column speaker system
| Specification |
| Model: COS001 |
| Channel 1 Rated Power 4Ω 600W（SUB） |
Channel 2 Rated Power 8Ω 200W（Hi） |
| Frequency Response 40Hz-20kHz |
| THD 1KHZ ≤0.5 |
| Damping Factor >200 |
| Slew Rale >20V/us |
| S/N >95dB |
| Sensitivity 0.775V |
| Inpit Impedance Balance 20K,Unbalace 10K |
| Output Topology CLASS-D |
| Protsction Short circuit,DC,Overheat,Peak Pressure Limit,Soft Start |
| Voltage AC110-240V/50Hz-60Hz voltage-selected switch |
