Driver

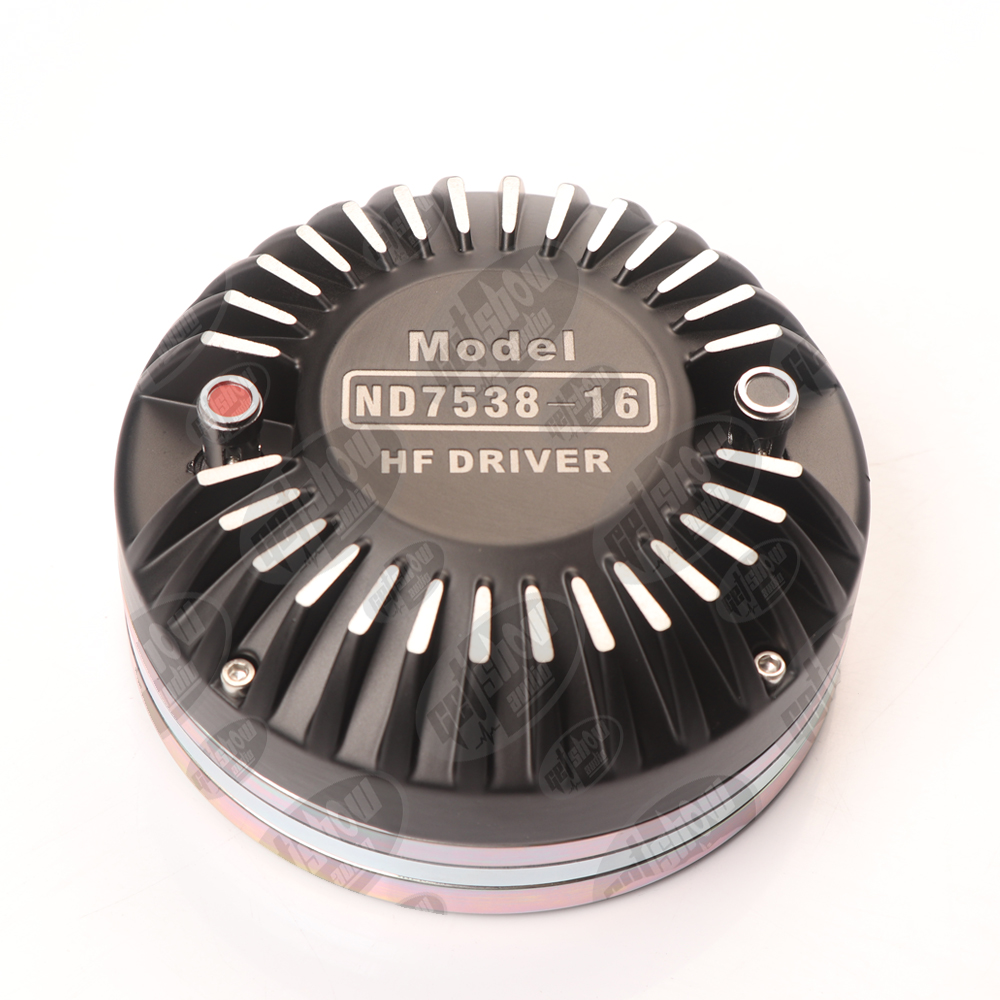

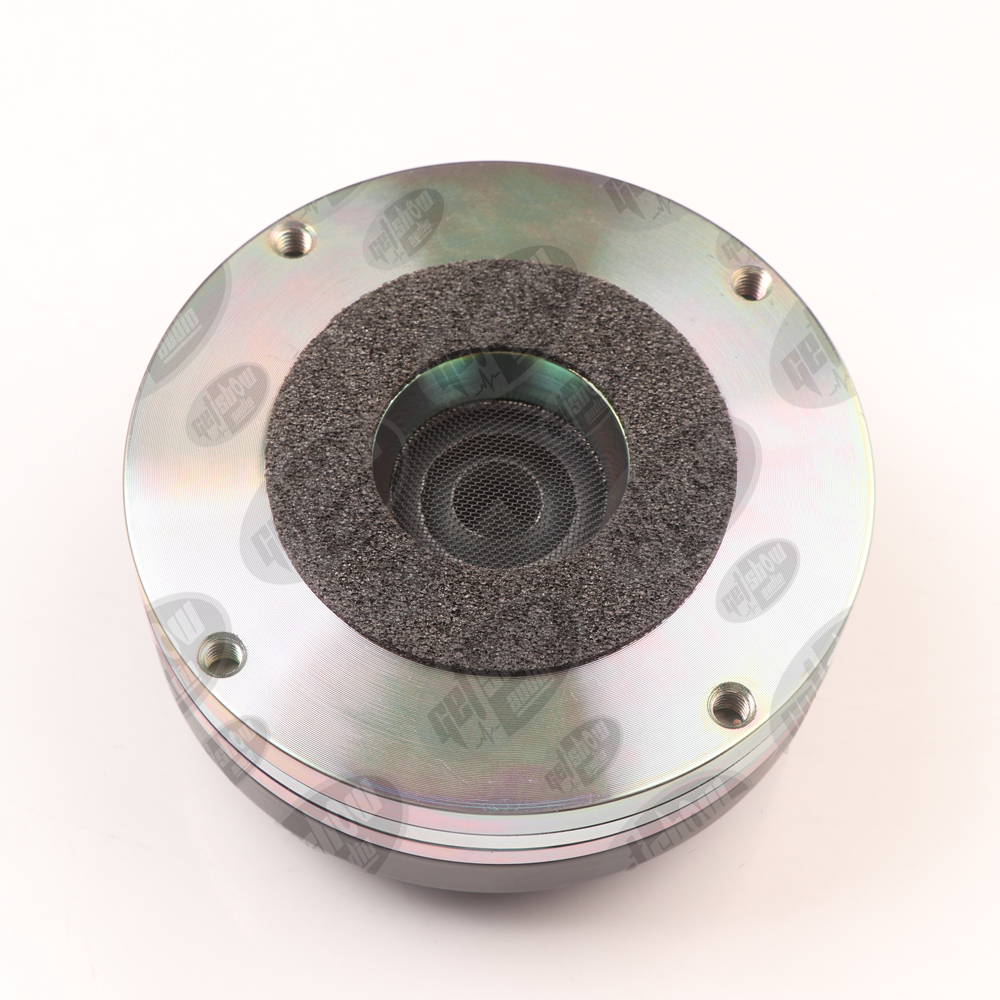

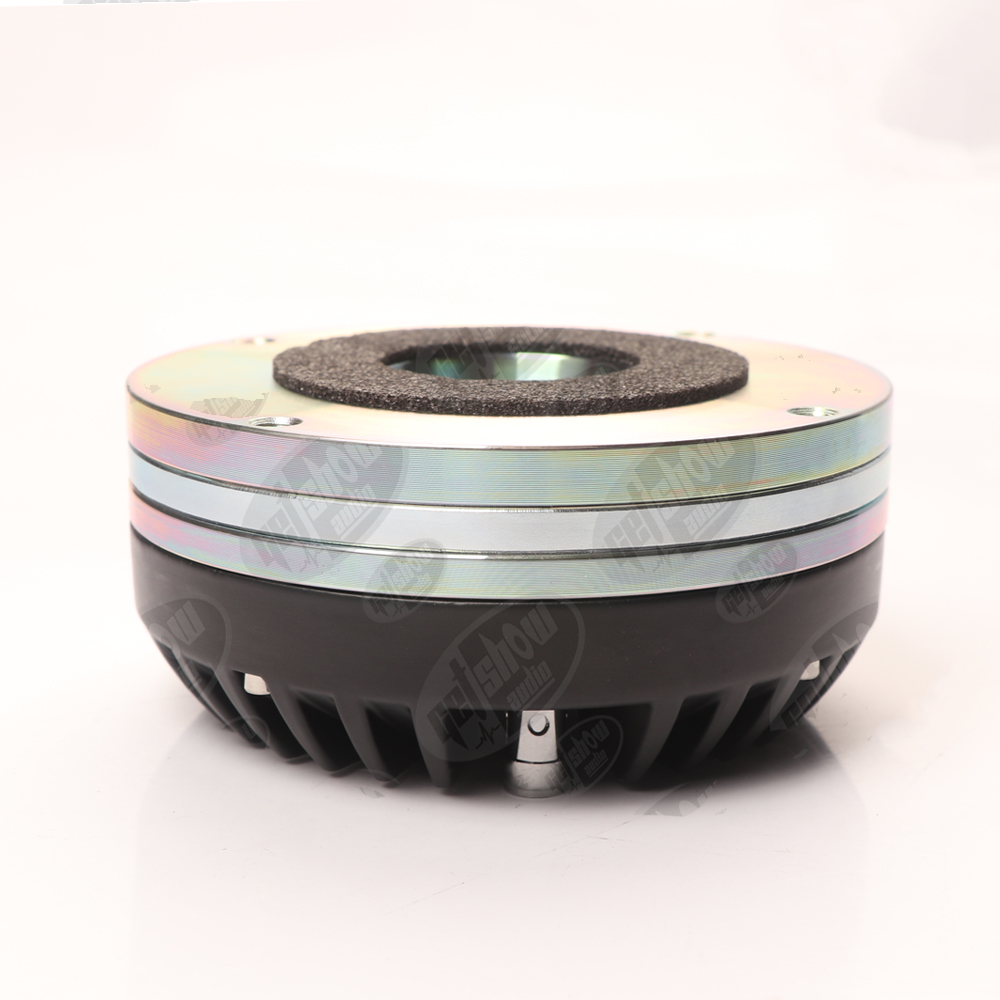

ND7538 75mm HF compression driver neodymium
- 75mm diaphragm
- 8 ohm
- (RMS):160 Watts
- Voice Coil Diameter: 3 inch
- Product description: ND7538 75mm HF compression driver neodymium
ND7538 75mm HF compression driver neodymium
320 W continuous program power capacity
1.4" horn throat diameter
75 mm (3 in) aluminum voice coil
Titanium diaphragm
500 - 18500 Hz response
108 dB sensitivity
Neodymium magnet assembly with shorting copper cap
| Specification | |
| Throat Diameter | 36mm (1.4in) |
| Nominal Impedance | 8 ohm |
| Nominal Power Handling | 160W |
| Sensitivity(1M1W) | 108dB |
| Frequency Range | 500 - 18.5 KHz |
| Recommended Crossover | 1.2 KHz |
| Voice Coil Diameter | 75 mm (3.0in) |

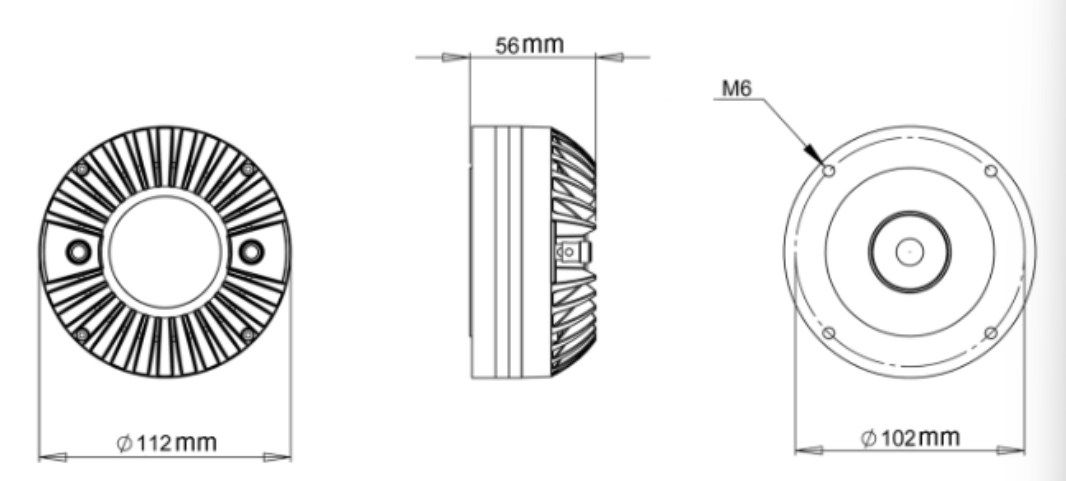

| Overall Diameter | 112 mm (4.41 in) |
| Net Weight | 1.8 kg (3.97 lb) |
| Shipping Box | 112*112*56mm |
