D75NV-8-75mm HF compression driver neodymium - 副本
- 75mm HF
- 8 ohms
- (RMS): 150 Watts
- Voice Coil Diameter: 3 inch
- Product description: D75NV-8-75mm HF compression driver neodymium

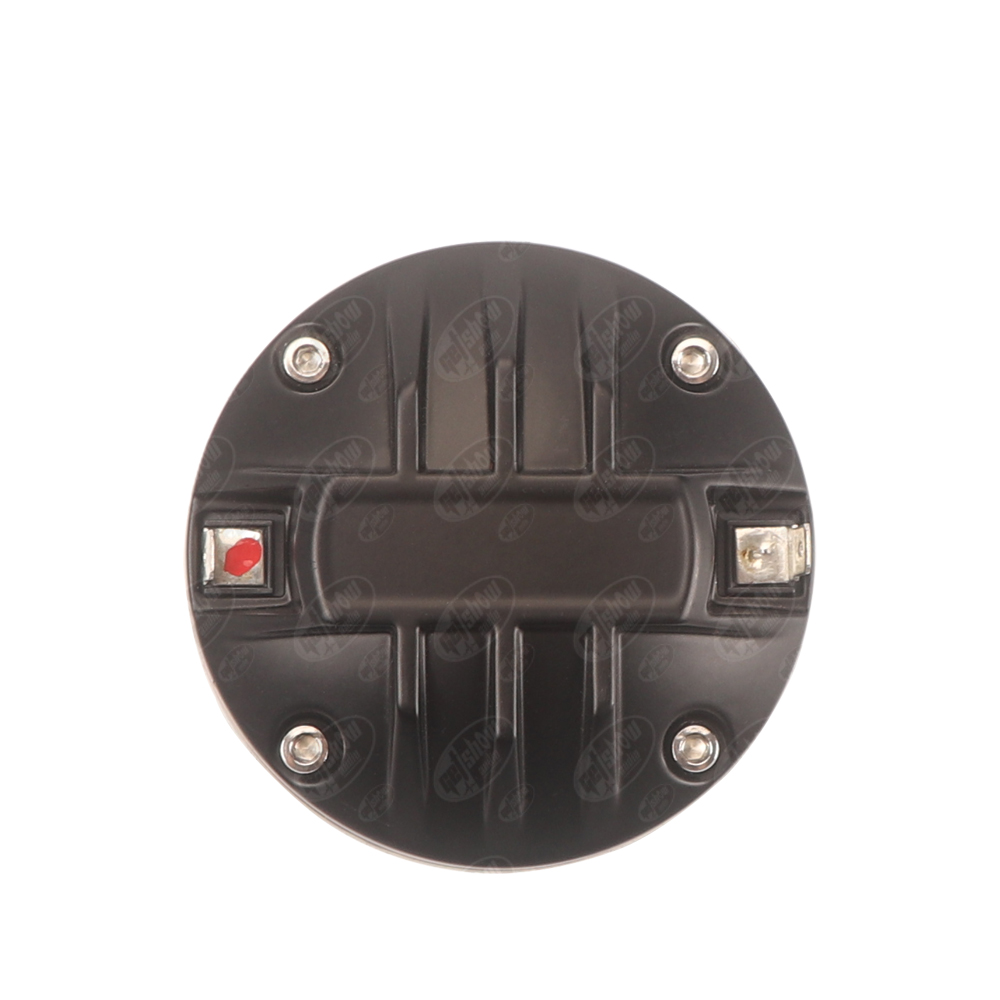

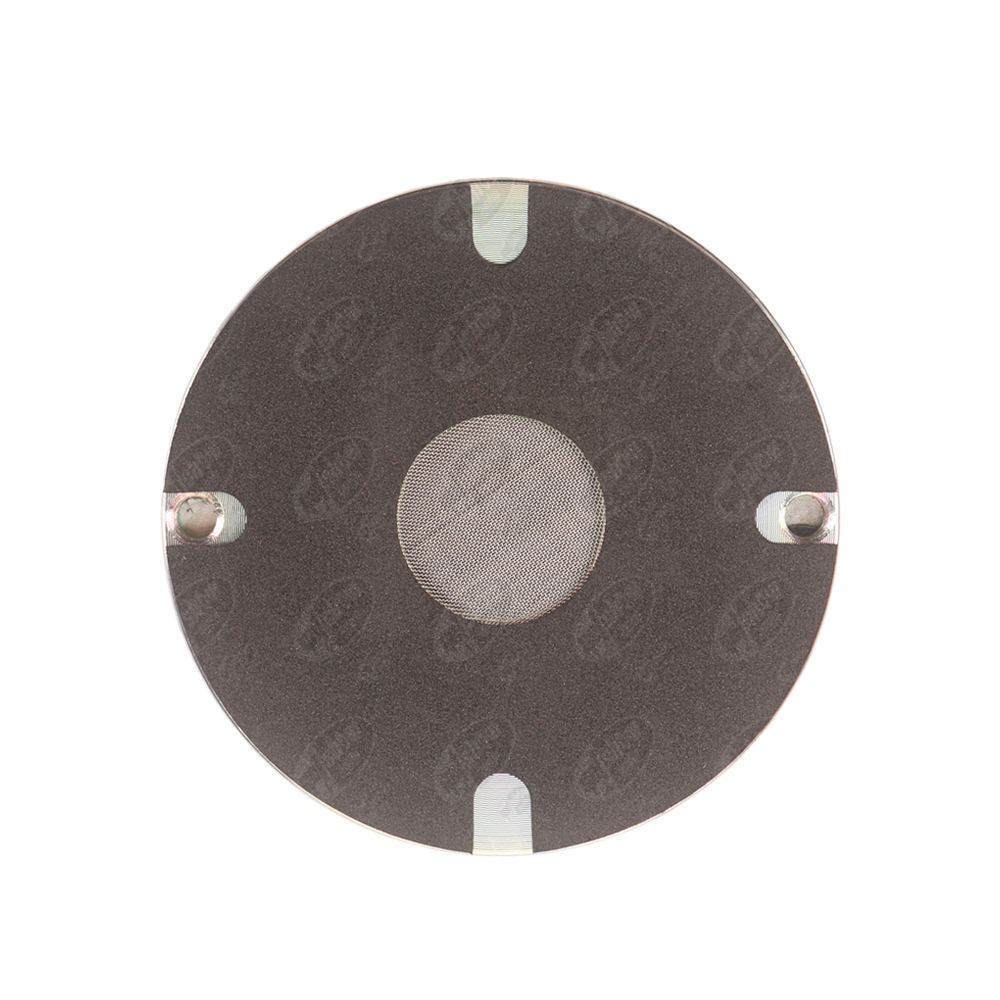

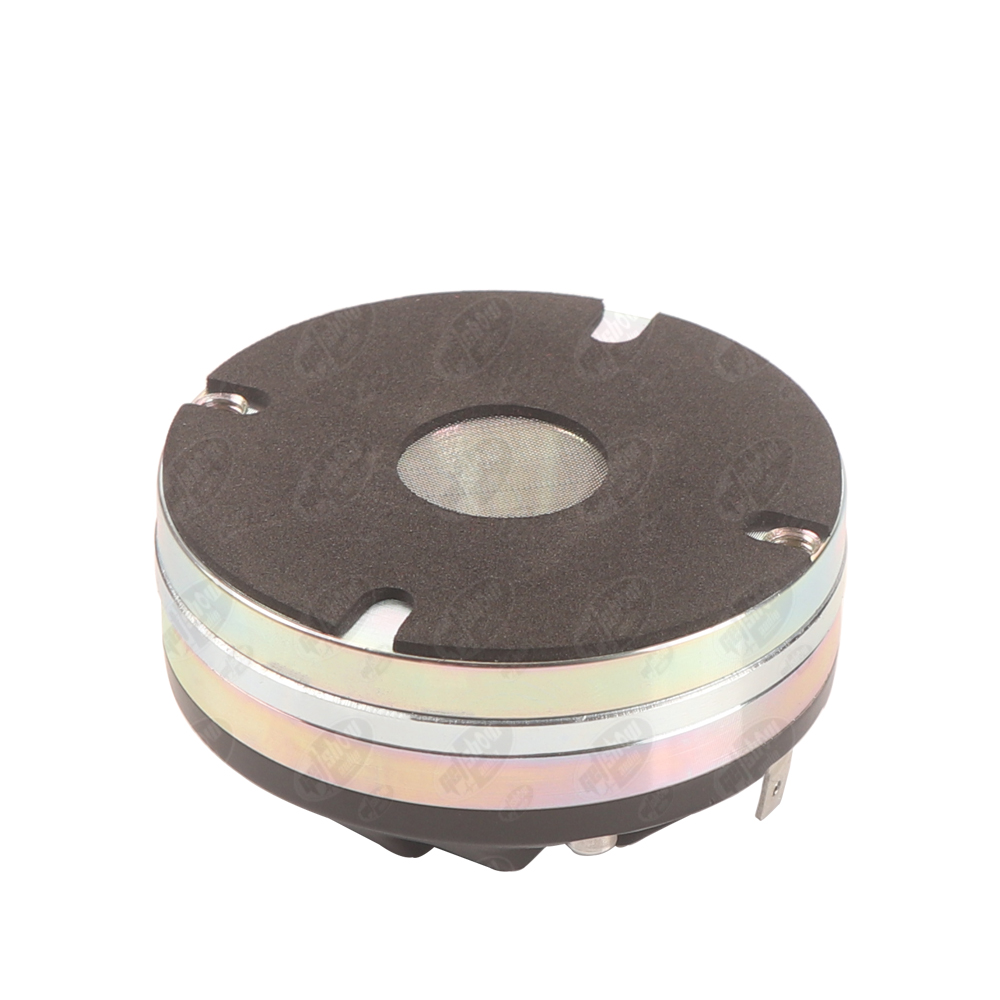

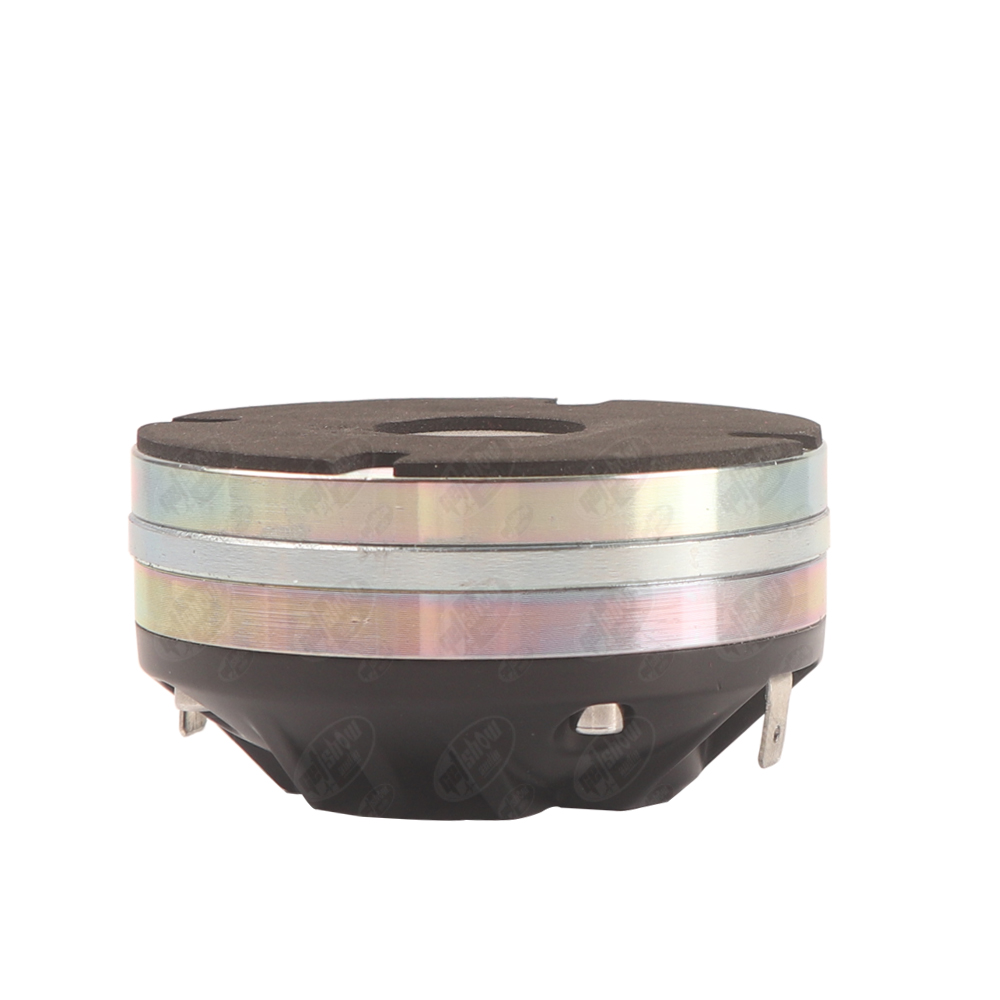

D75NV-8-75mm HF compression driver neodymium
300 W continuous program power capacity
1 ,4' horn throat diameter
75 mm (3 in) aluminum woice coll
Titanium diaphragm

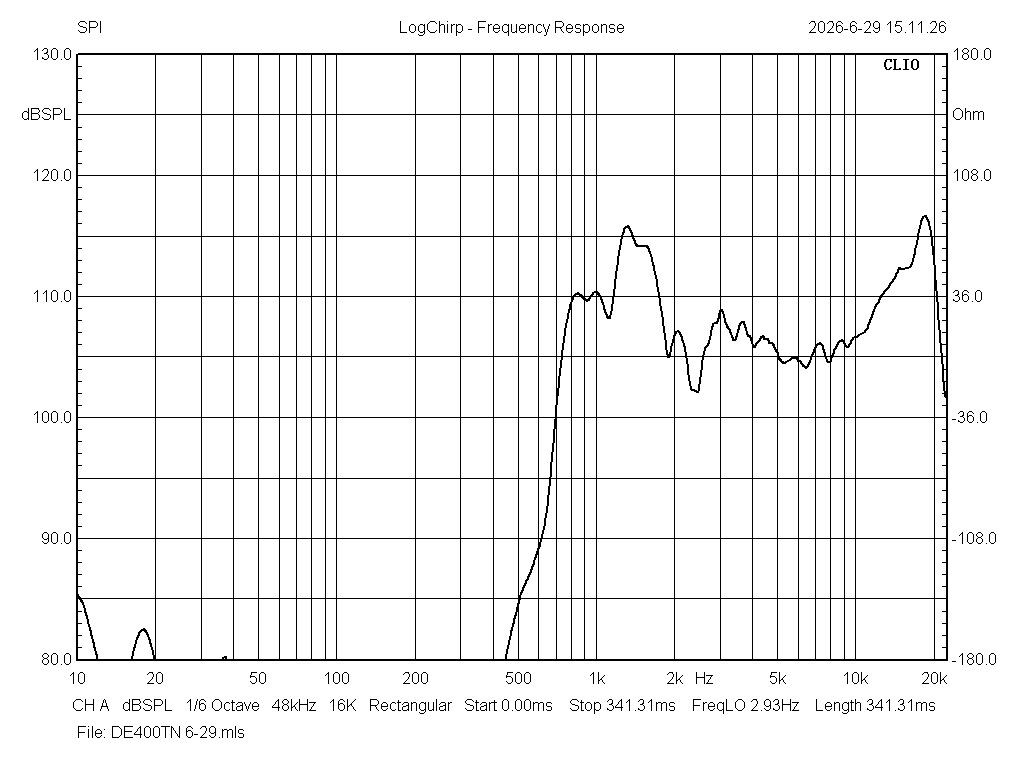

500 - 18500 Hz response
108 dB sensitivity
Shorting copper cap for extended HF response
| Specification | |
| Throat Diameter | 36mm(1.4in) |
| Nominal Impedance | 8 ohm |
| Nominal power Handing | 150w |
| Sensitivity | 108dB |
| Frequency Range | 500-18.5 KHz |
| Recommended Crossover | 1.0 KHz |
| Voice Coil Diameter | 75mm (3.0 in) |
| Overall Diameter | 170mm (6.7 in) |
| Net Weight | 4.85kg (10.67 lb) |
