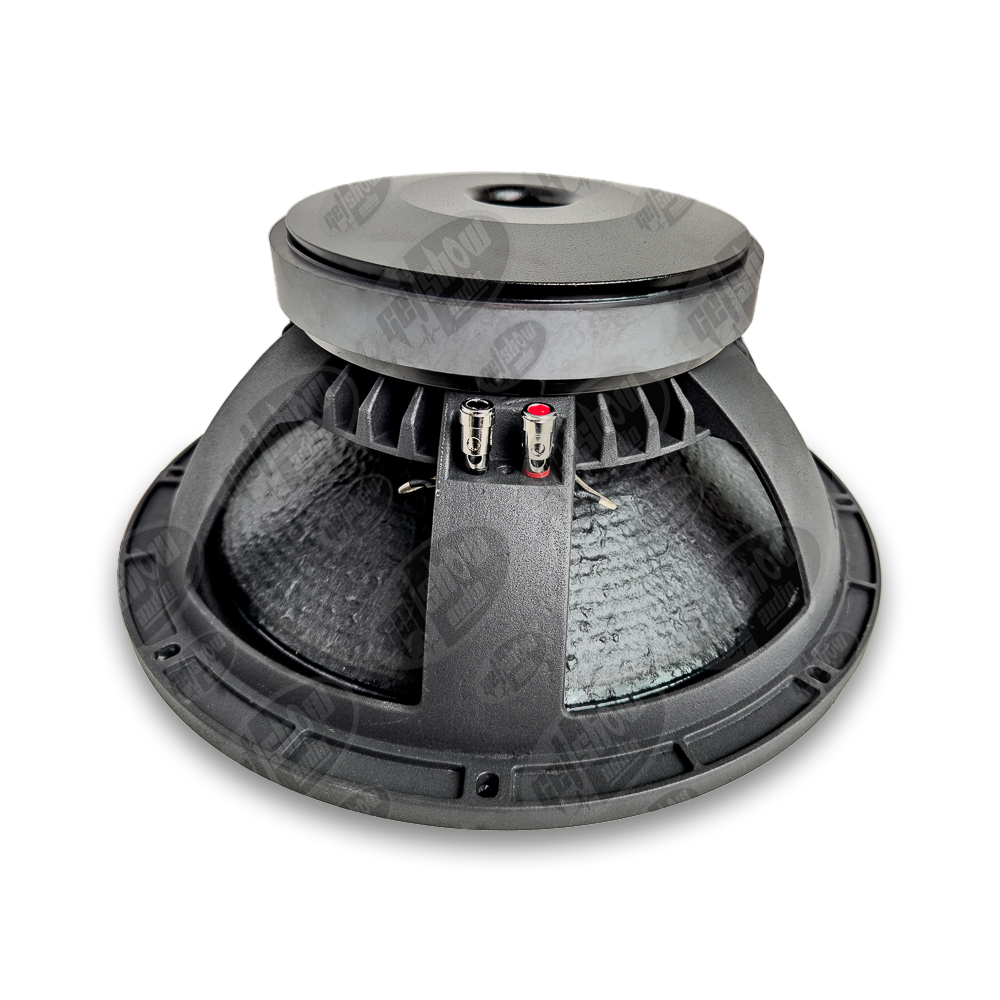

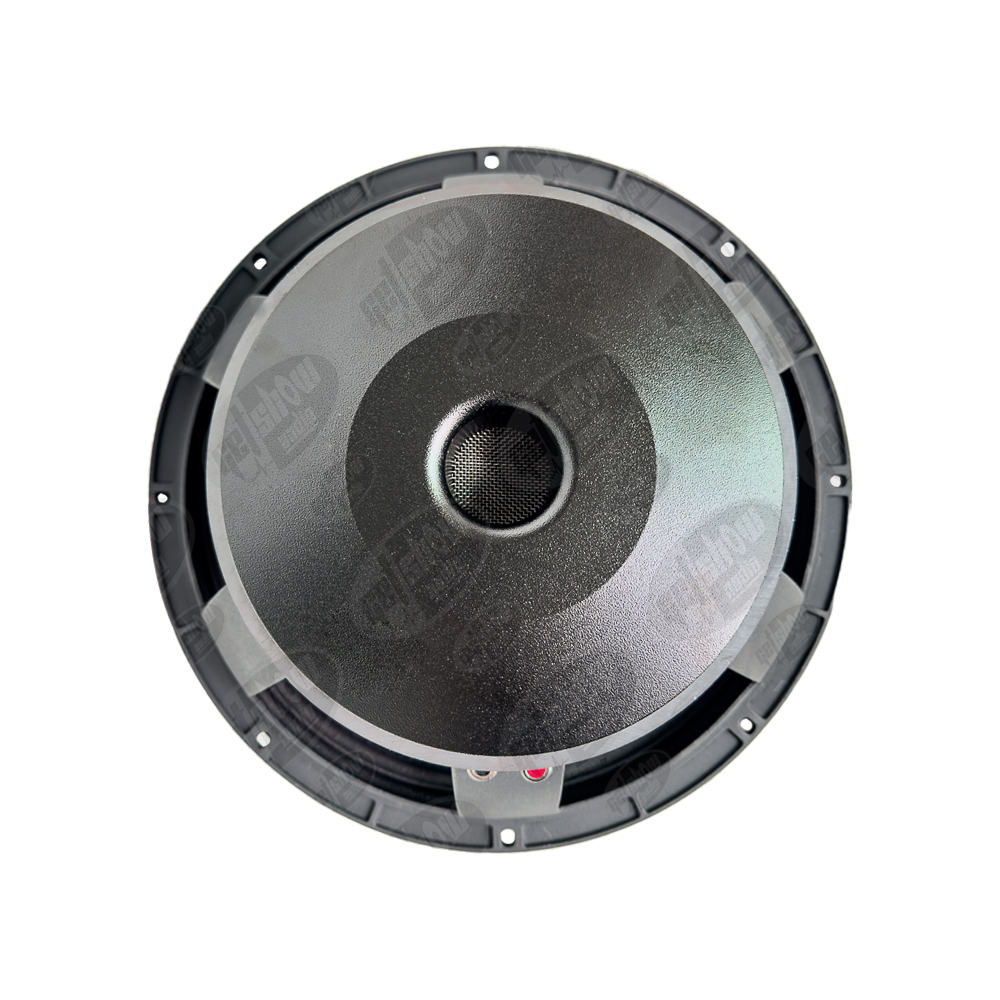

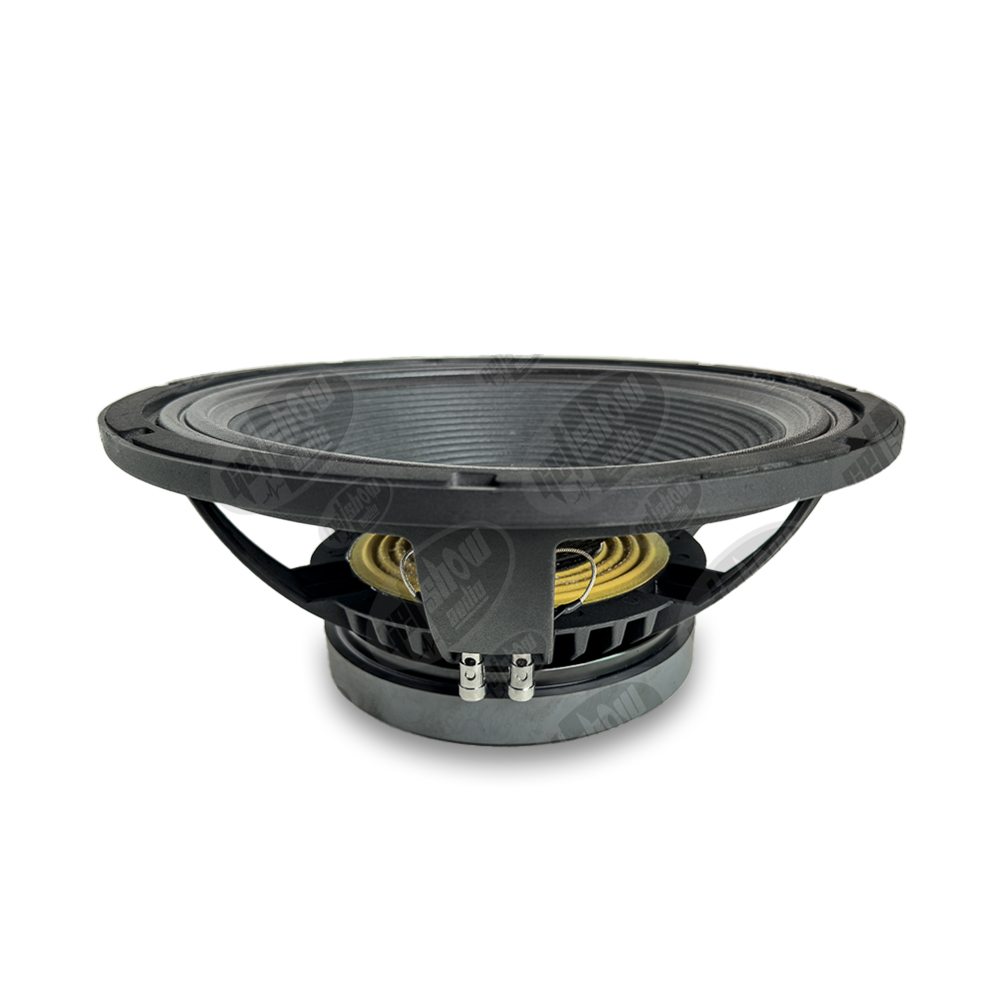

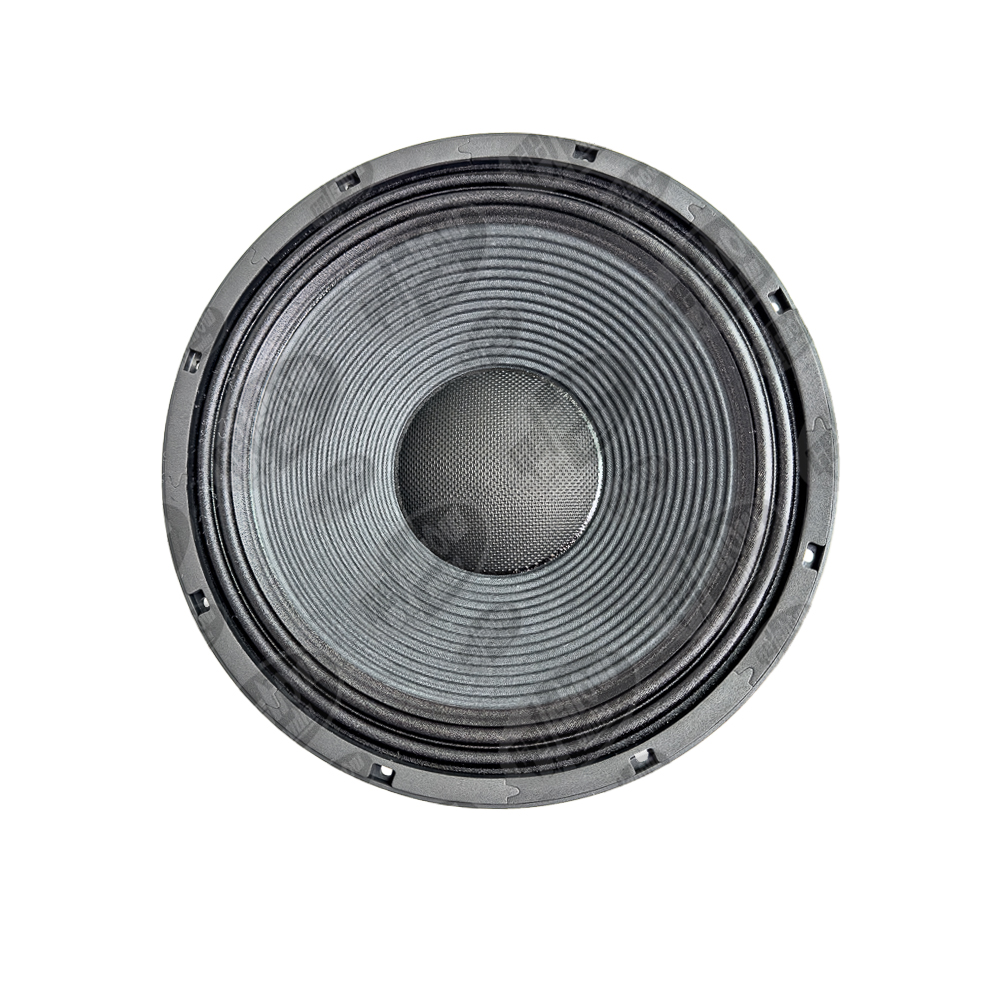

DB15-F01 15 inch Speaker -

Type: 15 inch woofer
Nominal Impedance: 8 Ohms
Rated AES Power Handling (RMS): 1200 Watts
Voice Coil Diameter: 4 inch
Product description: The new DB1801 will sure change the game on vocal reproduction! Features a large 4” voice coil that results in very high efficiency while providing smooth and accurate response.
INQUIRY

15 inch 8 ohm 1600 watts woofer speaker LF driver loudspeaker

The new DB1501 will sure change the game on vocal reproduction!
Features a large 4” voice coil that results in very high efficiency while providing smooth and accurate response.

Highlights

* Nominal Impedance: 8 Ohms
* Rated AES Power Handling (RMS): 1200 Watts
* Program Power: 1600 Watts
* Sensitivity (1W/1m): 95 dB
* Voice Coil Diameter: 4″

S Specification		Design
Nominal Diameter : 15inch		Surround Shape : M Roll
Nominal lmpedance : 8ohm		Cone Shape : Radial
Minimum lmpedance : 7.2ohm		Magnet Type : Ferrite Outside
Continuous Power Handling ： 1600W		Spider : Fabric
Nominal Power Handling(A.E.S.) : 800W		Pole Design : T-pole
Sensitivity(1W/1m) : 95dB		Recommended Enclosure Vol. : dm3(ft3)
Frequency Range : 40Hz-3kHz		Recommended Tuning Frq : 50 Hz
Voice Coil Diameter :100mm(3.94 in)
Winding Material : Copper		Parameters
FOrmer Material : Glass Fibre		Fs : 40Hz
Magnet Matorial : Ferrite		Re : 6.6 ohm
Winding Depth : 22mm(0.87 in)		Qes : 0.52
Magnetic Gap Depth : 10mm(0.43 in)		Qms : 5.3
Flux Density : 1.1 Tesla		Qts : 0.47
		Vas :150 dm3(ft3)
M Ounting &Shipping		Sd : 876cm2(in2)
Overall Diameter : 393mm		EtaZero : 3.30%
Bolt Circle Diameter : 374mm		Xmax : +-9.2mm
Baffle Cutout Diameter : 353mm		Xvar : +-12mm
Depth : 166mm		Mms : 113g
Flange Gasket Thickness ： 17.5mm		Bl : 19 TxM
Air volume Occupied by driver : 11 dm3(ft3)		Le : 2.3 Mh
Net Weight : 12 kg		EBP : 85Hz
Shipping Weight : 13.1kg(29 lb)
Shipping Box : 415415200mm
