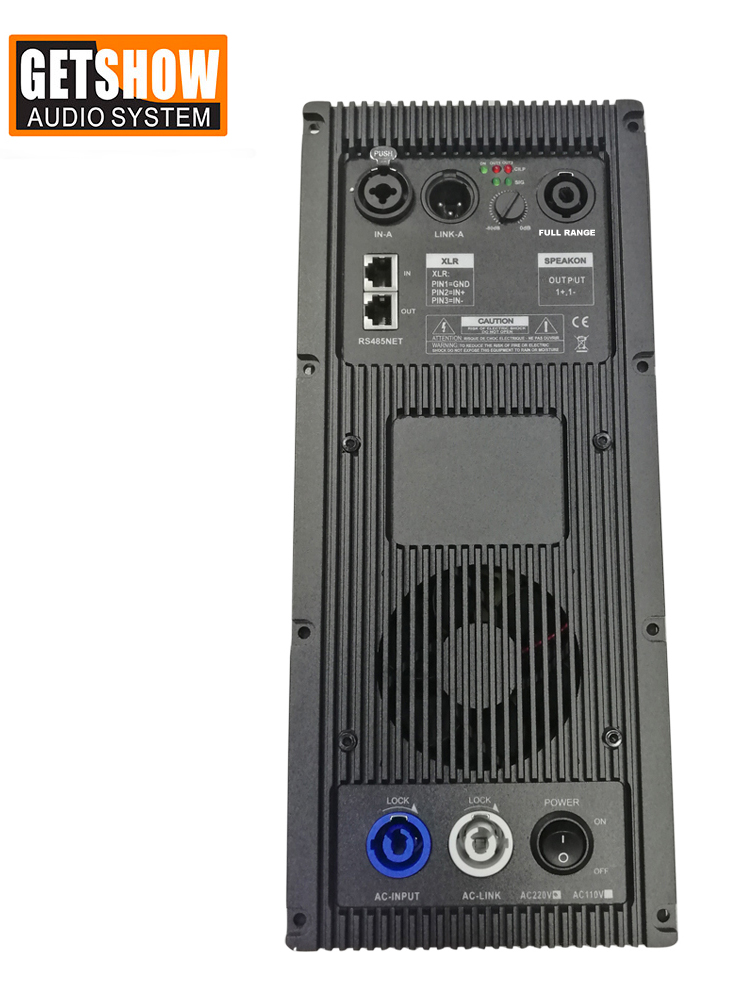

DSP810S 800W+150W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
- Bundle Bundle 2
- Model Number AV2400
- Type Power Amplifiers
- Origin: Mainland China
- Product description:
Description
2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
*Professional CLASS-D amplifier.
*Built-in high-performance 96KHZ DSP audio processor, RS485 online or network adjustment.
* Free Software is offered
*110-230v general working voltage
*Full sealed with the box, can be installed without a partition.
*Widely used in professional speaker, line array speaker
| Specification: | |
| Model: | DSP-810S |
| Rated Power 8Ω | 400W（LF）+150W（HF） |
| Rated Power 4Ω | 800w（LF） |
| Frequency Response | DSP Control |
| THD 1KHz | ≤0.5 |
| Damping Factor | >200 |
| Slew Rate | >20V/us |
| S/N | >95dB |
| Sensitivity | 0.775V |
| Input Impedance | Balanced: 20K, Unbalanced: 10K |
| Output Topology | CLASS-D |
| Protection | Pressure limit, overheating, Short Circuit, DC, Switch no shock |
| Voltage | AC110v---240V/50Hz~60Hz voltage-selected switch |
