Amplifier
DSP850 500W+800W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
- Brand Name: GETSHOW
- Certification； CE
- Type： Power Amplifiers
- Origin: Mainland China
- Product description:
Description

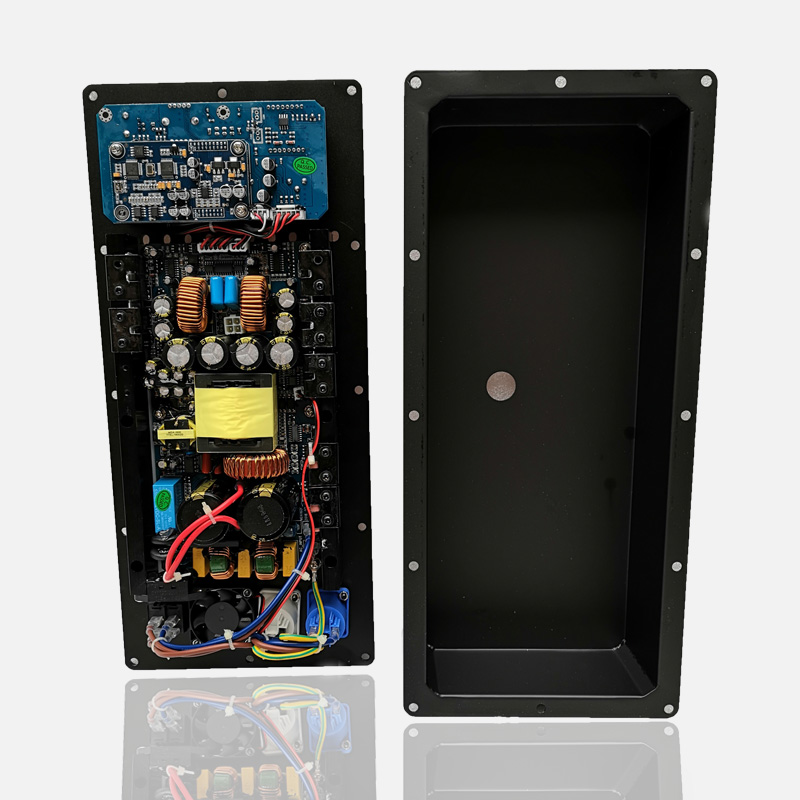

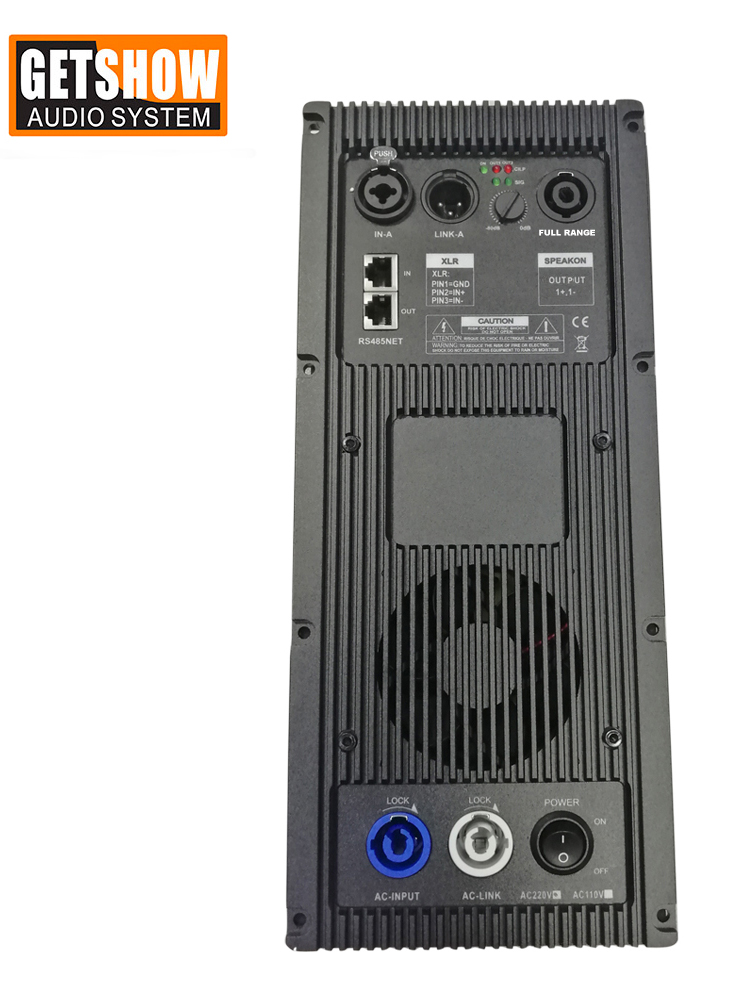

500W+800W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
*Professional CLASS-D amplifier. *Built-in high-performance 48KHZ DSP audio processor, RS485 online or network adjustment. * Free Software is offered *110-230v general working voltage *Full sealed with the box, can be installed without a partition. *Widely used in professional speaker, line array speaker
| Specification: | |
| Model: | DSP850 |
| Rated power 8Ω | 400+300w |
| Rated Power 8Ω | 800+500w |
| Frequency Response | DSP Control |
| THD 1KHZ | ≤0.5 |
| Damping Facto | >200 |
| Slew Rate | >20V/us |
| S/N | >95dB |
| Sensitivity | 0.775v |
| Input Impedance | Balance 20K, Unbalance 10k |
| Output Topology | CLASS-D |
| Protection | Short circuit, DC, Overheat, Peak Pressure Limit, Soft Start |
| Voltage | AC110-240V/50Hz-60Hz voltage-selected switch |
